110cm Diameter Drum Hot Air Oolong Tea Shaking Machine ZC-6CZQ-110T

Short Description:

ZC-6CZQ-110T oolong tea shaking drum can use wood and coal heating, also can use electric heating, drum materials made from steel.


  • Model: ZC-6CZQ-110T
  • Dimensions: 3760×1120×1450 mm
  • Voltage / frequency: 380V / 50HZ
  • Total heating power: 12 kW
  • Working speed of roller: 15-30 r/min
  • Inner diameter of roller: 1100 mm
  • Length of roller: 3000 mm
  • Output: 350 Kg/h
  • Product Detail

    Product Tags

    Knowledge Points:

    Q: Why should the oolong tea be shaken?

    A: Shaking and withering are part of the fermentation. During the process withering, the leaves are calm and a large amount of water will only evaporate from the leaves, and the water in the leaf stalks will not be lost. Which will cause the bitterness of the tea leaves is very strong and seriously affects the quality of oolong tea. Therefore, it is necessary to shake. Through the shaking process, the leaf activity is enhanced. The water in the leaf stem continues to be transported to the leaves, allowing the leaves to re-evaporate the water. The grassy smell in the tea is dropped, so that the taste of the finished oolong tea is not very bitter, which greatly improves the quality of oolong tea.

    Description:

    The hot air tea shaking machine is one of the important equipments for producing high-end oolong tea. The drum is punched with the galvanized sheet, which is beautiful and elegant. You can also choose all stainless steel sheet, which is more hygienic and environmentally friendly.

    With the highly integrated intelligent control panel, roasting speed, temperature, processing time, etc can be adjusted. You could choose electric heating or wood or charcoal heating.
    Through the rotation of the machine and heating, the moisture in the tea can be evenly distributed, and at the same time, the fermentation can be slowly made to make the finished tea taste more fragrant.
    With the heating furnace, different wood or charcoal can be used to make the tea with different wood flavors. And the flavor of the finished tea is unique! It is different from ordinary traditional tea.

    Features:

    1. Using galvanized punching sheet metal, the appearance is flat and beautiful;
    2. Using automatic temperature control, main fan timing, drive timing;
    3. All use electric heating and give a cast iron stove basin, which is sturdy and durable.

    Specification:

    Model DL-6CZQ-110T
    Dimensions(LengthxWidthxHeight) 3760×1120×1450 mm
    voltage / frequency 380V /50HZ
    Total heating power 12 kW
    Drum driving motor
    YCT speed regulation
    Power 1.5 kW
    Speed 1400 r/min
    Voltage 380 V
    Fan power  Power 1.5 kW
    Speed 1400 r/min
    Voltage 380 V
    Working speed of roller 15-30 r/min
    Inner diameter of roller 1100 mm
    Length of roller 3000 mm
    Output 350 Kg/h

    In order to meet the needs of different customers, we can provide stainless steel drum and adjust the mesh size on the machine plate according to your needs.

    Details:

    Control Panel ( we can provide English type or other languages type )

    Side view, cover open.

    Mesh size is 2*20mm, ensure to sieve out the broken slag and leave the complete tea leaves in the drum.

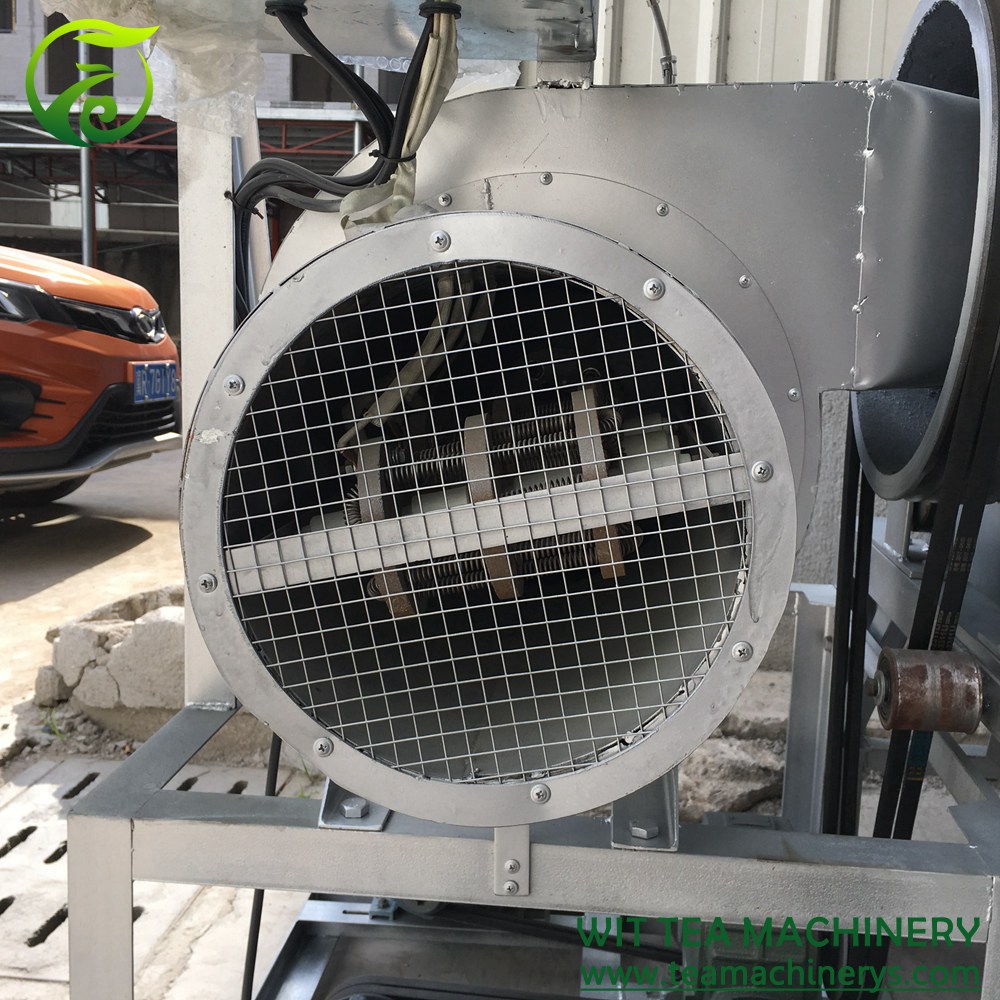

    With 3 groups high strength and durable heating element, adjustable temperature.

    The cast iron combustion furnace can burn wood for heating, and the tea leaves are made with a special wood fire fragrance, very good!

    Tea Leaves After Shaking:

    The state of high-grade oolong tea: green leaves with red edge. ( The red edge around is due to the natural fermentation of tea inside the machine, rather than the rotting )
